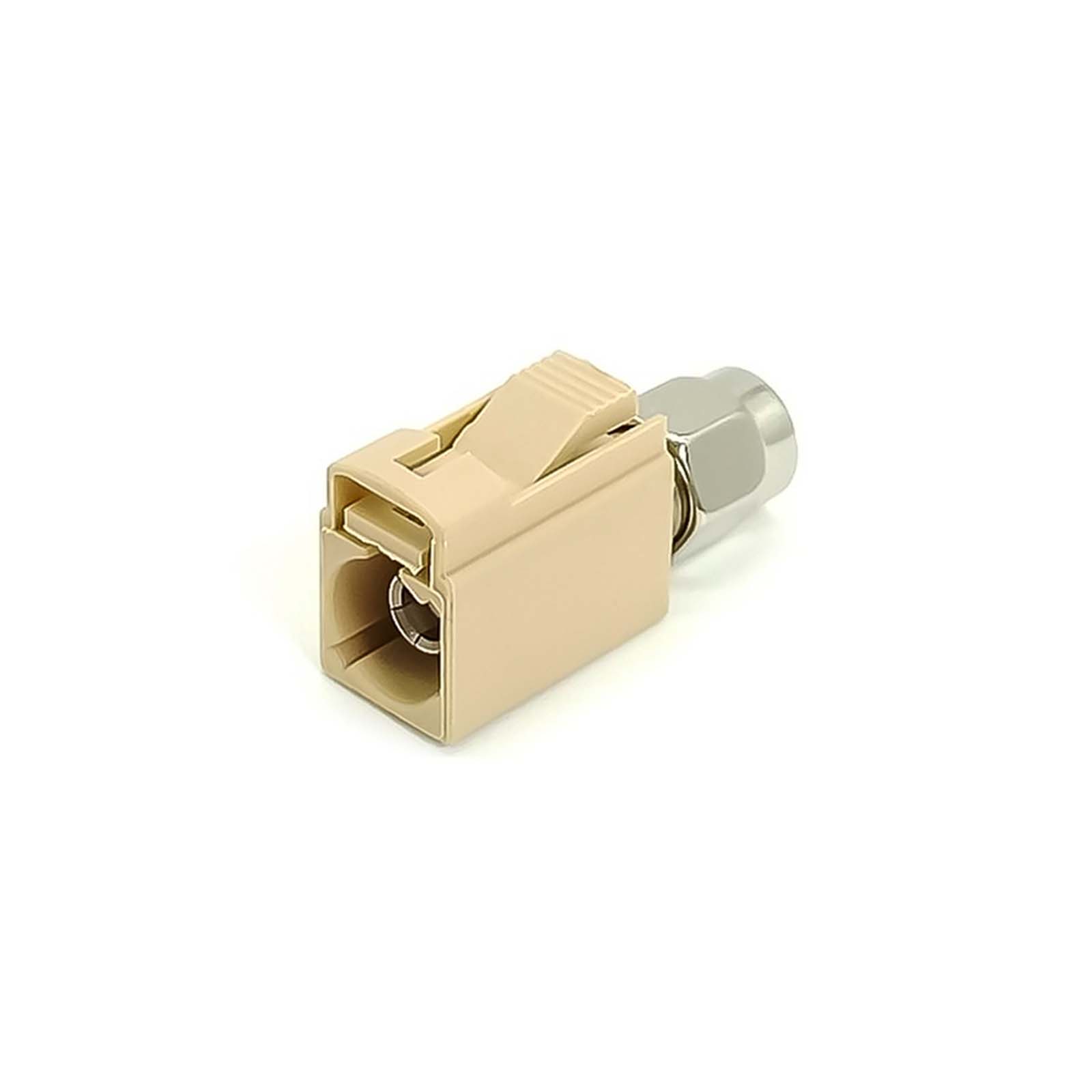

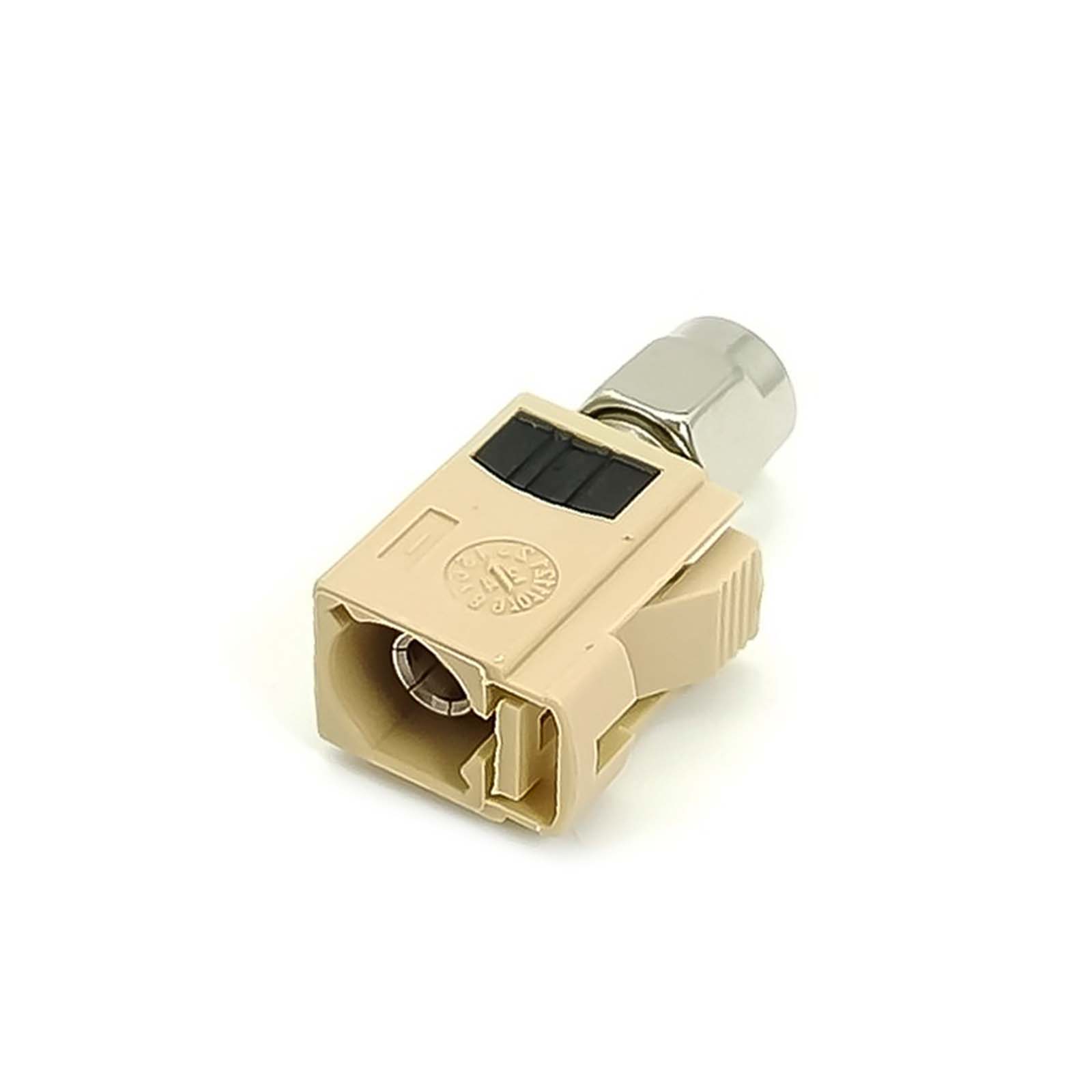

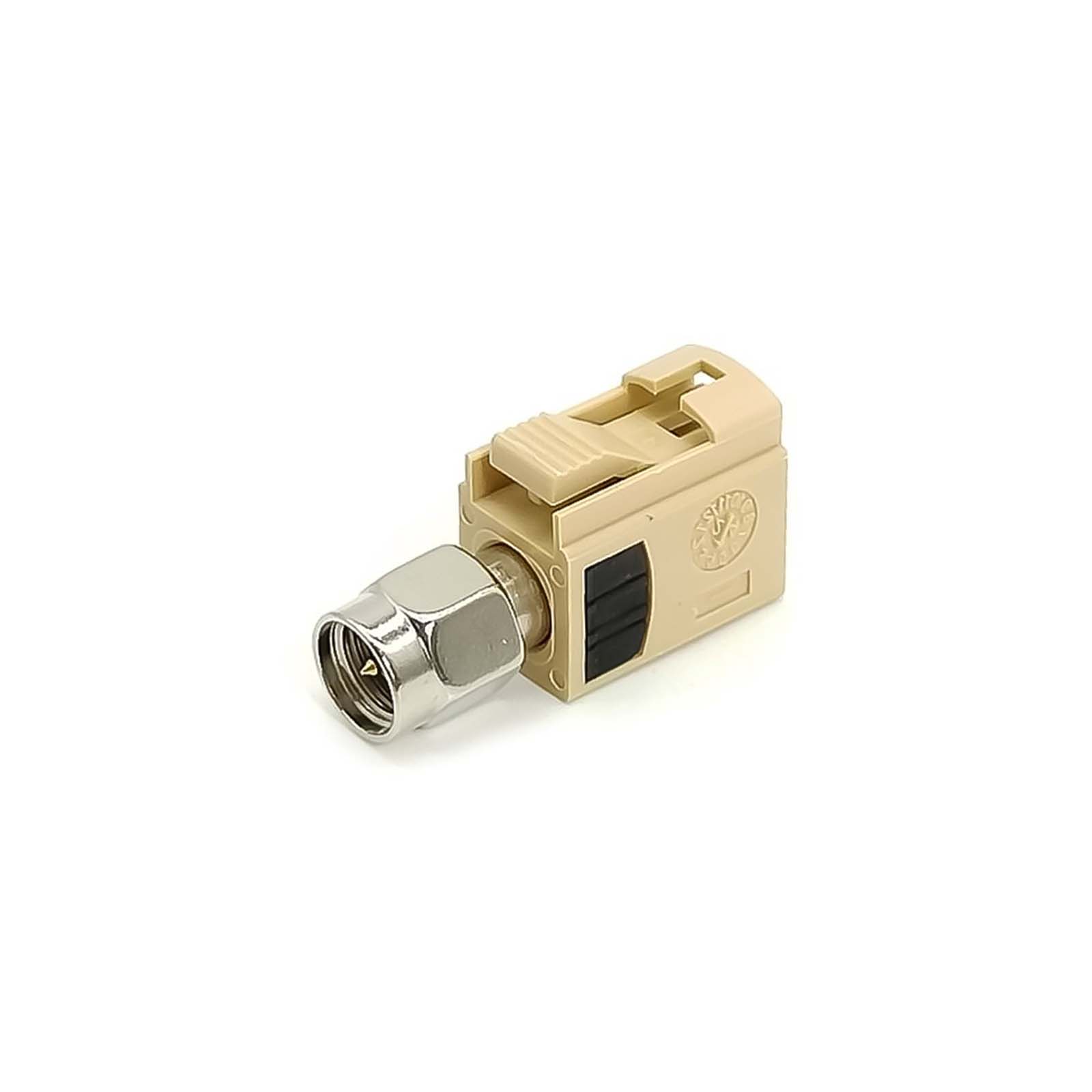

I Code Fakra Female to SMA Male Adapter Car RF Board End Bluetooth Antenna Connector
Bulk Purchase, Auto Savings:
$1.91
10-19 PCS
$1.81
20-99 PCS
$1.61
100+ PCS
Rated impedance: 50Ω
Rated voltage: 60V DC
Working voltage: 335Volts rms
Insulation resistance: 1000MΩ Min
Voltage withstand: 500volts rms
Current: 1A Max
Inner conductor contact resistance: 5mΩ Max
Outer conductor contact resistance: 5mΩ Max
VSWR/Return Loss: 0-3GHz≤1.5, 3-6GHz≤1.58
Mechanical performance:
Durability: 50 Cycles Min
Insertion Force: 30N Max
Withdrawal Force: 2N Min
Retention Force: 100N Min
Misinsertion Prevention: 40N Min
Environmental characteristics:
Operating Temperature: -40℃ to+105℃
Thermal Shock: -40℃ to +85℃, 100cycles
Vibration and Mechanical Shock: Random,5~10ms,35Gs,1/2sine
Temperature and Humidity Cycling: 40 Cycles,8 Hrs/Cycle
Waterproof: ISO20653IP69K; Submersion over 120 hours
